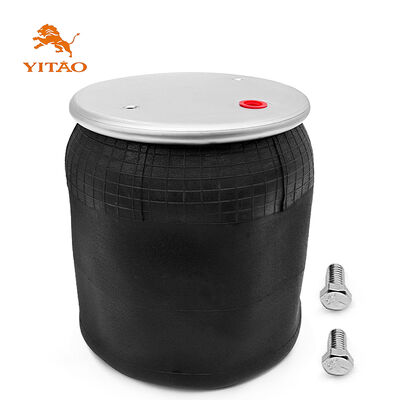

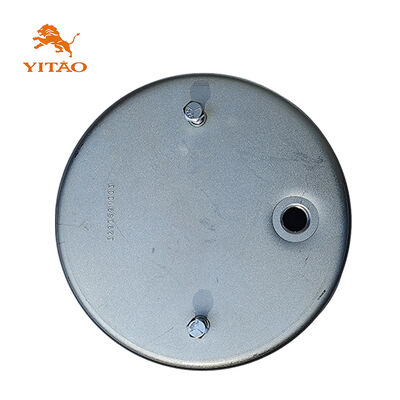

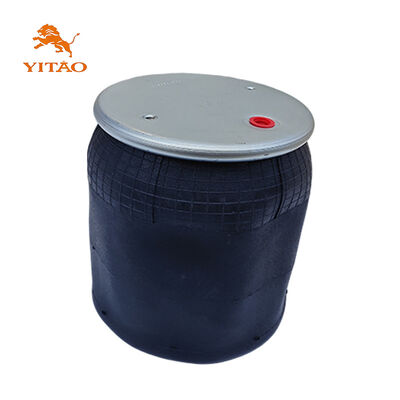

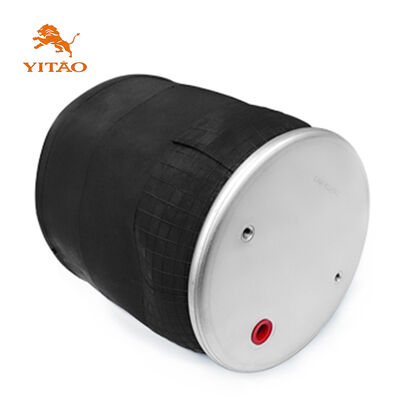

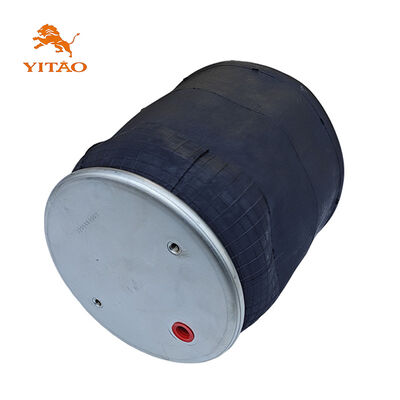

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

認証
中国 Yitao Air Spring Group 認証
中国 Yitao Air Spring Group 認証
オンラインです

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

大画像 :  Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

商品の詳細:
起源の場所: 中国
ブランド名: YITAO
証明: IATF16949
モデル番号: 1V 8864/0V15M-9
お支払配送条件:
最小注文数量: 50枚
価格: Negotiable in person
パッケージの詳細: カートン
受渡し時間: 1~30日
支払条件: T/T
供給の能力: 5000個/月

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716

説明
OE 番号: W01-358-8864、1T15M-9、03-08716 YITAO番号: 1V 8864
タイプ: トラック用空気ばね 状態: 真新しい
保証: 12ヶ月 通常の配送時間: 3~10日
シーリング構成: 圧着カバープレート+加硫シールプレート 材料: 天然ゴム
ピストン材質: プラスチック パッキング: ニュートラルパッキングまたはカスタマイズされたパッキング

Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716



Manufactured to specifications matching Firestone W01-358-8864 and Peterbilt 03-08716, this air spring fully replaces the original equipment and provides a comfortable and stable ride.

Cross References
BrandReference NumbersNumbering Discrepancy
FirestoneW01-358-8864W013588864 / W01-358-8864 / W01 358 8864
Firestone1T15M-91T15M9 / 1T15M-9 / 1T15M 9
Peterbilt03-087160308716 / 03-08716 / 03 08716
Technical Specifications
SpecificationsParameters
Outer diameterφ255
Weight5.322 kg
Package Dimensions27*27*30 cm
Natural height623mm
Maximum height603mm
Minimum height195mm
Extended Height623mm
Compressed Height197mm
Top Plate Width231mm
Piston Width205mm
Product Drawings & Images
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 0

Images shown are for reference only. Actual product may vary slightly.

Factory Showcase
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 1
Factory Overlook
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 2
Quality Control Inspection
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 3
Manufacturing Equipment
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 4
R&D Center
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 5
Assembly and Forming
Cab Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-8864, Peterbilt 03-08716 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions

IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
