商品の詳細:
|
| OE番号: | 4882N1P05,34882K,20.4884.5.CM,3.66422,04.010.6100.930,04 | OE NO. 2: | 04.060.6106.930、81.43600.6036、6056、81.43600.6067、W01-M58-9880、1R10-709 |
|---|---|---|---|
| タイプ: | トラック用空気ばね | 応用: | トラックの空気懸濁液のため |
| パッキング: | ニュートラルパッキングまたはカスタマイズされたパッキング | 保証: | 1年 |
| 状態: | 新しい | 最小注文数量: | 50枚 |
| シーリング構成: | 圧入カバープレート＋フランジ | 材料: | ゴム |
| ピストン材質: | 鉄 | ||

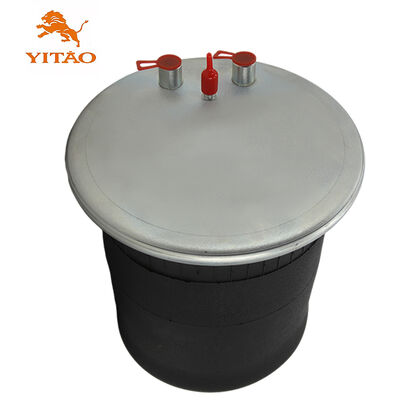

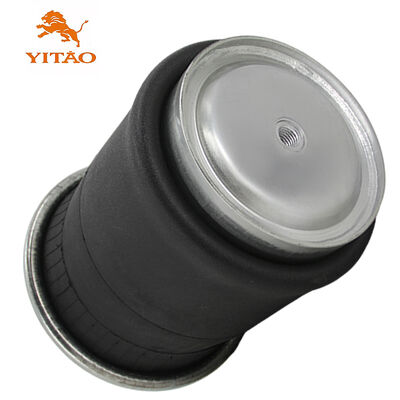

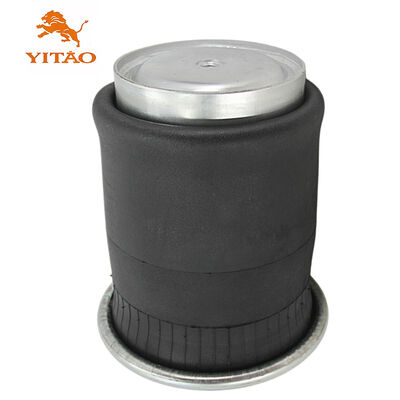

| ハイライト: | 1V 6045 truck air spring,Truck air spring for Firestone W01-M58-9880,Goodyear 1R10-709 compatible air spring |
||
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Contitech | 4882N1P05 | :4882N1P05 |
| Airtech | 34882K | :34882K |
| Airfren | 20.4884.5.CM | 2048845CM / :2048845CM |
| DT | 3.66422 | 366422 / :366422 |
| Templin | 04.010.6100.930 | 040106100930 / :040106100930 |
| Templin | 04.060.6106.930 | 040606106930 / :040606106930 |
| MAN | 81.43600.6036 / 6056 | 81436006036 / 6056 / :81436006036 / :6056 |
| MAN | 81.43600.6067 | 81436006067 / :81436006067 |
| Firestone | W01-M58-9880 | W01M589880 / :W01M589880 |
| Goodyear | 1R10-709 | 1R10709 / :1R10709 |
| Specifications | Parameters |
|---|---|
| Natural height | 615mm |
| Maximum height | 535mm |
| Minimum height | 218mm |
| Extended Height | 750mm |
| Compressed Height | 288mm |
| Top Plate Width | 252mm |
| Piston Width | 176mm |
| Outer diameter | φ224 |
| Weight | 8.941 kg |
| Package Dimensions | 28*28*37.5cm |
| Category | Details |
|---|---|
| Delivery Time | Orders are typically shipped within 30 business days after payment is received |
| Packing | Brown carton packing; we can also pack according to your requirements |
| Marks | Generally display weight and size. We can also make shipping marks according to your requirements |
| Transportation Method | Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods |
| International Transport | Due to international transportation, we need to pack according to strict requirements to avoid damage. If logistics information is stagnant during transport, please wait patiently. Contact us with any questions. |
