1V 8105 Truck Air Spring Suitable for Firestone W01-M58-8105

大画像 : 1V 8105 Truck Air Spring Suitable for Firestone W01-M58-8105

商品の詳細:

起源の場所:	中国
ブランド名:	YITAO
証明:	IATF16949
モデル番号:	1V 8105

お支払配送条件:

最小注文数量:	50
価格:	Negotiable in person
パッケージの詳細:	カートン
受渡し時間:	30
支払条件:	T/T
供給の能力:	5000個/月

連絡先

1V 8105 Truck Air Spring Suitable for Firestone W01-M58-8105

説明

OE番号:	W01-M58-8105、C01-M58-1163	タイプ:	トラック用空気ばね
応用:	トラックの空気懸濁液のため	パッキング:	ニュートラルパッキングまたはカスタマイズされたパッキング
状態:	新しい	保証:	1年
最小注文数量:	50枚	シーリング構成:	クリンプカバープレート+加硫シールプレート
材料:	ゴム	ピストン材質:	鉄
ハイライト:	1V 8105 truck air spring , Firestone W01-M58-8105 air spring , truck air spring with warranty

1V 8105 Truck Air Spring Suitable for Firestone W01-M58-8105

1V 8105 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8105, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8105	W01 M58 8105/W01M588105/W01M58-8105/W01-M588105/W01-M58-8105
Firestone	C01-M58-1163	C01 M58 1163/C01M581163/C01M58-1163/C01-M581163/C01-M58-1163

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	To be updated
Package Dimensions	To be updated
Natural height	735mm
Maximum height	715mm
Minimum height	275mm
Extended Height	To be updated
Compressed Height	To be updated
Top Plate Width	289mm
Piston Width	261mm

1V 9321 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

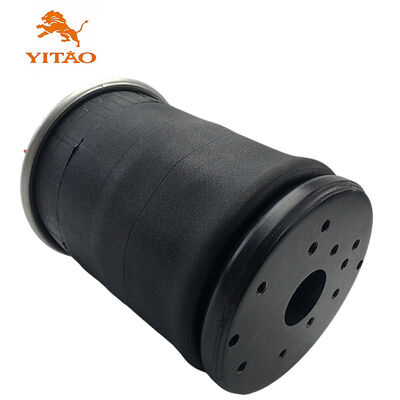

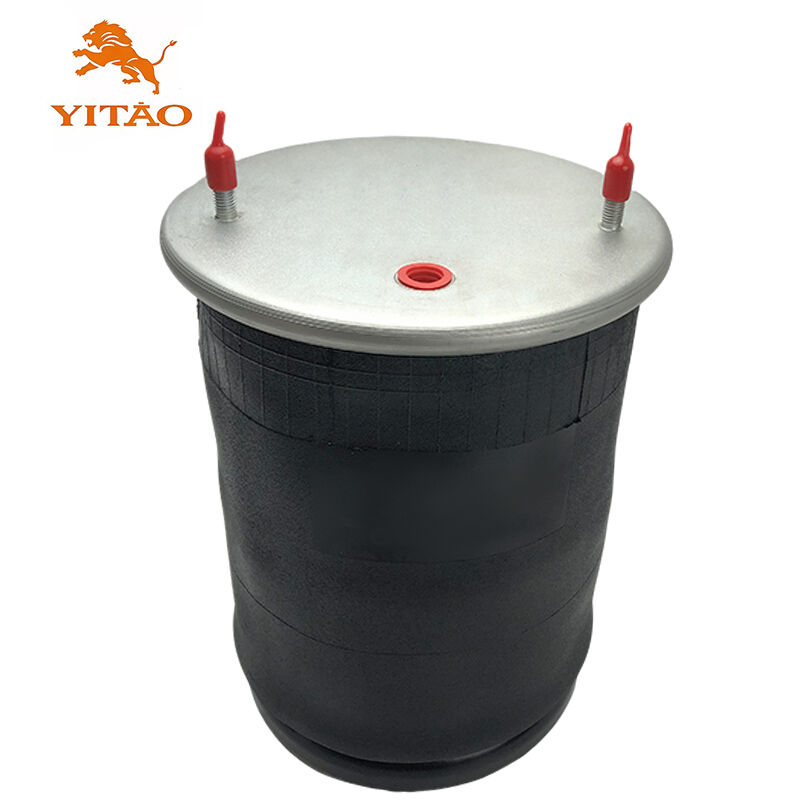

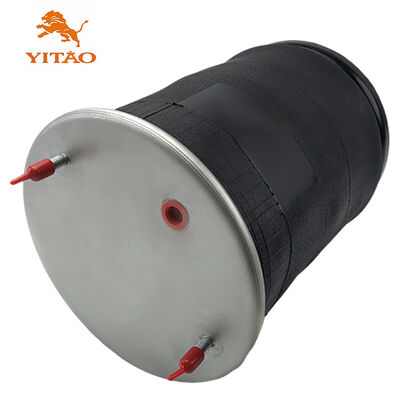

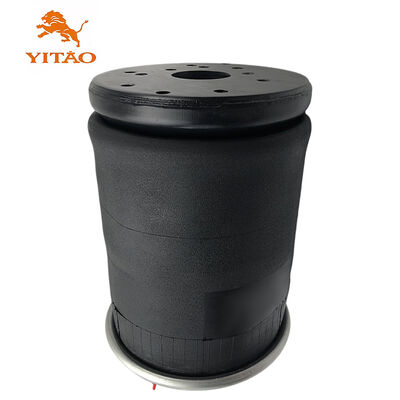

W01-M58-8105 C01-M58-1163 Truck Air Spring Real Pictures
