1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

大画像 : 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

商品の詳細:

起源の場所:	中国
ブランド名:	YITAO
証明:	IATF16949
モデル番号:	1V 8602

お支払配送条件:

最小注文数量:	50
価格:	Negotiable in person
パッケージの詳細:	カートン
受渡し時間:	30
支払条件:	T/T
供給の能力:	5000個/月

連絡先

1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

説明

OE番号:	W01-M58-8602、1T66D-7.0、4881NP02、1R14-757、D141444、16905、05.429.40.08.1	OE NO2:	05.429.41.31.0,05.429.43.41.0,500036830,05.429.41.36.0,05.429.41.21.0
タイプ:	トラック用空気ばね	応用:	トラックの空気懸濁液のため
パッキング:	ニュートラルパッキングまたはカスタマイズされたパッキング	状態:	新しい
保証:	1年	最小注文数量:	50枚
シーリング構成:	クリンプカバープレート+加硫シールプレート	材料:	ゴム
ピストン材質:	プラスチック
ハイライト:	Truck Air Spring for Firestone W01-M58-8602 , Truck Air Spring for Goodyear 1R14-757 , Truck Air Spring with warranty

1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

1V 8602 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8602/Goodyear 1R14-757, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8602	W01 M58 8602/W01M588602/W01M58-8602/W01-M588602/W01-M58-8602
Firestone	1T66D-7.0	1T66D 7.0/1T66D7.0/1T66D-7.0
Contitech	4881NP02	:4881NP02
Goodyear	1R14-757	1R14 757/1R14757/1R14-757
Dunlop	D141444	:D141444
Granning	16905	:16905
BPW	05.429.40.08.1 / 05.429.41.36.0	05.429.40.08.1 05.429.41.36.0/05.429.40.08.105.429.41.36.0/05.429.40.08.1/05.429.41.36.0
BPW	05.429.41.21.0/05.429.41.31.0	05.429.41.21.0 05.429.41.31.0/05.429.41.21.005.429.41.31.0/05.429.41.21.0/05.429.41.31.0
BPW Type	05.429.43.41.0	05.429.43.41.0
IVECO	500036830	:500036830

Technical Specifications

Specifications	Parameters
Outer diameter	φ298
Weight	13.612kg
Package Dimensions	333335.5cm
Natural height	547mm
Maximum height	527mm
Minimum height	223mm
Extended Height	559mm
Compressed Height	223mm
Top Plate Width	315mm
Piston Width	251mm

1V 8602 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

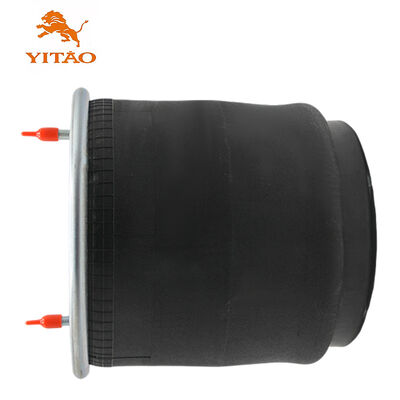

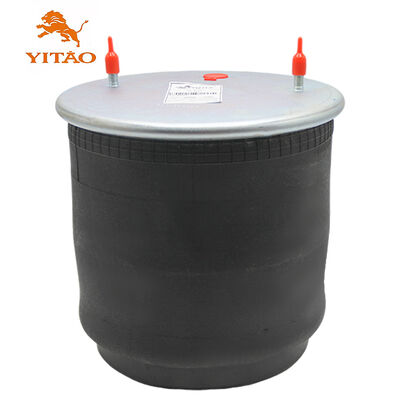

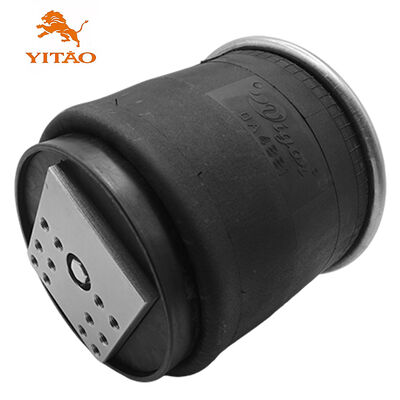

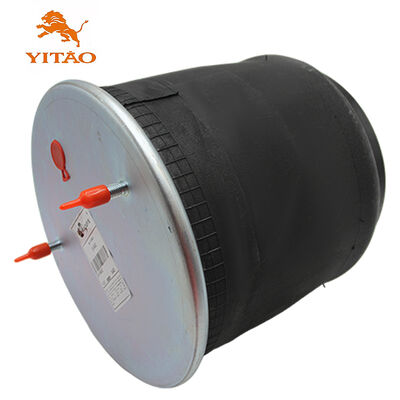

W01-M58-8602, 1T66D-7.0 Truck Air Spring Real Pictures
