商品の詳細:
|
| OE 番号: | W01-M58-8721,836M2K1,60210,1R12-711,1DF25-13,KR721-03,D13B31,131062,3836-02K,15996,9518127110,MLF805 | YITAO番号: | 1V 8721 |
|---|---|---|---|
| タイプ: | トラック用空気ばね | 状態: | 真新しい |
| 保証: | 12ヶ月 | 通常の配送時間: | 3～10日 |
| シーリング構成: | 圧入カバープレート+フランジ | 材料: | 天然ゴム |
| ピストン材質: | 鉄 | パッキング: | ニュートラルパッキングまたはカスタマイズされたパッキング |
| ハイライト: | Truck air spring OE replacement,Coach suspension air bellows,Firestone Contitech air spring |
||

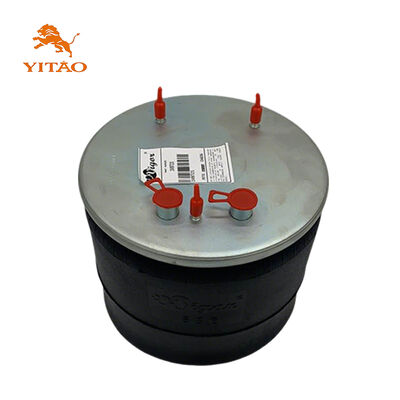

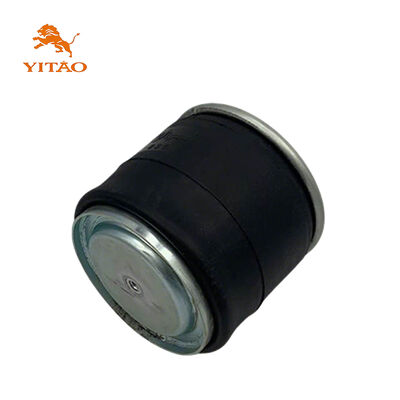

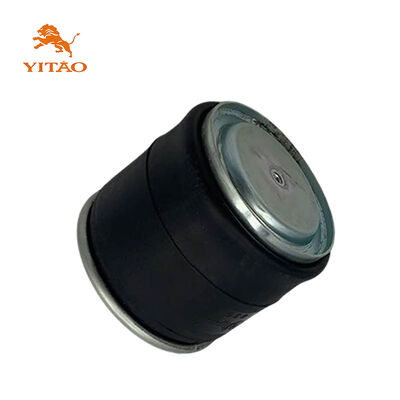

Manufactured to specifications matching Firestone W01-M58-8721 / Contitech 836M2K, this air spring fully replaces the original equipment and provides a comfortable and stable ride.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-8721 | W01M588721 / W01-M58-8721 / W01 M58 8721 |
| Contitech | 836M2K1 | :836M2K1 |
| Contitech | 60210 | :60210 |
| Goodyear | 1R12-711 | 1R12711 / 1R12-711 / 1R12 711 |
| Phoenix | 1DF25-13 | 1DF2513 / 1DF25-13 / 1DF25 13 |
| Taurus | KR721-03 | KR72103 / KR721-03 / KR721 03 |
| Dunlop FR | D13B31 | :D13B31 |
| Airtech | 131062 | :131062 |
| Airtech | 3836-02K | 383602K / 3836-02K / 3836 02K |
| Granning | 15996 | :15996 |
| WABCO | 9518127110 | :9518127110 |
| Meritor | MLF8059 | :MLF8059 |
| VDL/DAF | 0388167 | :0388167 |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ265 |
| Weight | 9.710 kg |
| Package Dimensions | 28*28*31.5cm |
| Natural height | 519mm |
| Maximum height | 469mm |
| Minimum height | 185mm |
| Extended Height | 420mm |
| Compressed Height | 155mm |
| Top Plate Width | 272mm |
| Piston Width | 225mm |
Images shown are for reference only. Actual product may vary slightly.
