Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545

Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545

大画像 :  Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545

商品の詳細:
起源の場所: 中国
ブランド名: YITAO
証明: IATF16949
モデル番号: 1V 8806/0V15M-4
お支払配送条件:
最小注文数量: 50枚
価格: Negotiable in person
パッケージの詳細: カートン
受渡し時間: 1～30日
支払条件: T/T
供給の能力: 5000個/月
連絡先

Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545

説明
OE 番号: W01-358-8806、1T15M-4,910-14A545、1R12-455、1003588806C YITAO番号: 1V 8806
タイプ: トラック用空気ばね 状態: 真新しい
保証: 12ヶ月 通常の配送時間: 3～10日
シーリング構成: 圧着カバープレート+加硫シールプレート 材料: 天然ゴム
ピストン材質: アルミニウム パッキング: ニュートラルパッキングまたはカスタマイズされたパッキング
ハイライト:

Firestone truck air suspension replacement

,

Contitech commercial vehicle air spring

,

heavy-duty rubber air bag

Commercial Vehicle Rubber Air Bag Air Suspension Replacement
Commercial Vehicle Rubber Air Spring Heavy Duty Air Suspension Bag Firestone W01-358-9367, Hendrickson 003319
Product Overview

Manufactured to specifications matching Firestone W01-358-8806 and Contitech 910-14A545, this air spring fully replaces the original equipment and provides a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8806 W013588806 / W01-358-8806 / W01 358 8806
Firestone 1T15M-4 1T15M4 / 1T15M-4 / 1T15M 4
Contitech 910-14A545 91014A545 / 910-14A545 / 910 14A545
Goodyear 1R12-455 1R12455 / 1R12-455 / 1R12 455
Ridewell 1003588806C 1003588806C
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 7.416 kg
Package Dimensions 27*27*30.5cm
Natural height 434mm
Maximum height 414mm
Minimum height 136mm
Extended Height 432mm
Compressed Height 140mm
Top Plate Width 231mm
Piston Width 250mm

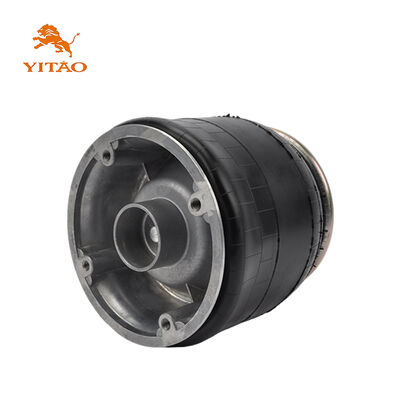

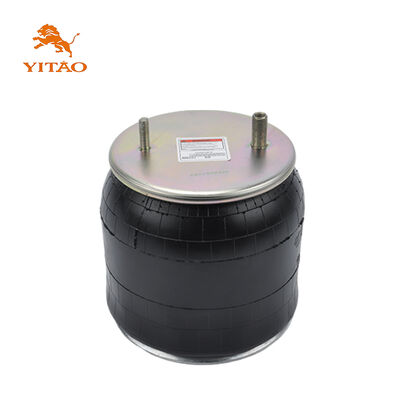

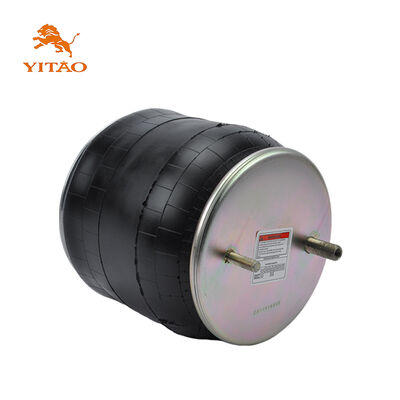

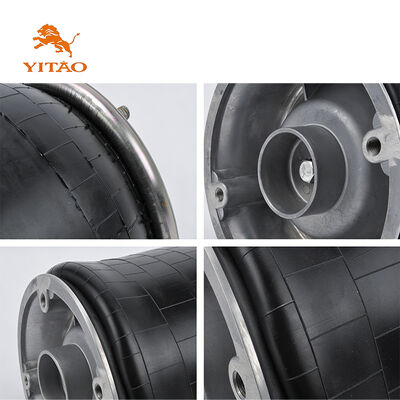

Product Drawings & Images
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 0
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 1
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 2
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 3
Factory Overlook
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 4
Quality Control Inspection
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 5
Manufacturing Equipment
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 6
R&D Center
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 7
Assembly and Forming
Commercial Vehicle Rubber Air Bag Air Suspension Replacement Firestone W01-358-8806, Contitech 910-14A545 8
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
