商品の詳細:
|
| OE 番号: | W01-358-9243、1T15M-9,910-19P384、1R12-480、566243066、900557112、8384、6364、AS-0061 | YITAO番号: | 1V 9243 |
|---|---|---|---|
| タイプ: | トラック用空気ばね | 状態: | 真新しい |
| 保証: | 12ヶ月 | 通常の配送時間: | 3～10日 |
| シーリング構成: | 圧着カバープレート+加硫シールプレート | 材料: | 天然ゴム |
| ピストン材質: | プラスチック | パッキング: | ニュートラルパッキングまたはカスタマイズされたパッキング |
| ハイライト: | Bus air suspension rubber spring,Firestone W01 air spring replacement,Contitech 910 truck air spring |
||

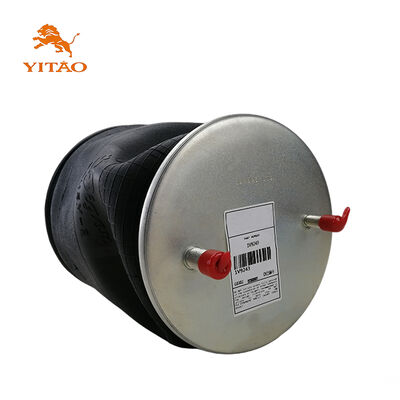

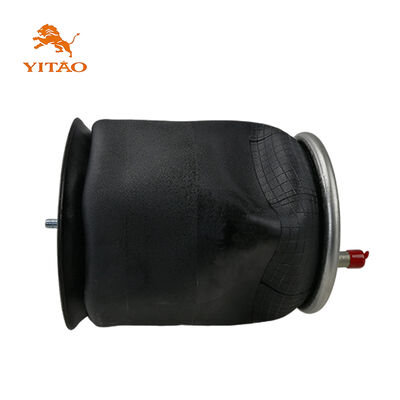

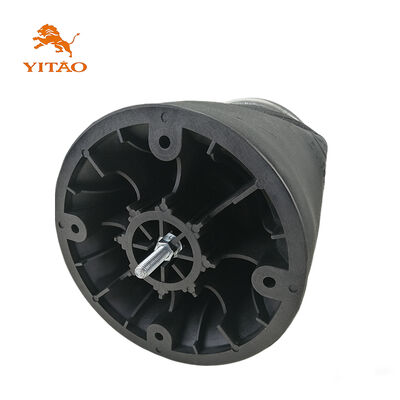

Manufactured to specifications matching Firestone W01-358-9243 and Contitech 910-19P384, this air spring fully replaces the original equipment and provides a comfortable and stable ride.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-358-9243 | W013589243 / W01-358-9243 / W01 358 9243 |
| Firestone | 1T15M-9 | 1T15M9 / 1T15M-9 / 1T15M 9 |
| Contitech | 910-19P384 | 91019P384 / 910-19P384 / 910 19P384 |
| Goodyear | 1R12-480 | 1R12480 / 1R12-480 / 1R12 480 |
| Goodyear | 566243066 | 566243066 |
| Holland(Neway) | 900557112 | 900557112 |
| Triangle | 8384 | 8384 |
| Triangle | 6364 | 6364 |
| Watson&Chalin | AS-0061 | AS0061 / AS-0061 / AS 0061 |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ255 |
| Weight | 8.035 kg |
| Package Dimensions | 27*27*45cm |
| Natural height | 603mm |
| Maximum height | 583mm |
| Minimum height | 189mm |
| Extended Height | 597mm |
| Compressed Height | 188mm |
| Top Plate Width | 231mm |
| Piston Width | 260mm |
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
