Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag
Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag

大画像 :  Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag

商品の詳細:
起源の場所: 中国
ブランド名: YITAO
証明: IATF16949
モデル番号: 3B 8033/03B 300
お支払配送条件:
最小注文数量: 50ピース
価格: Negotiable in person
パッケージの詳細: カートン
受渡し時間: 1～30日
支払条件: T/T
供給の能力: 5000個/月
連絡先

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag

説明
OE 番号: W01-358-8033、FT330-29525、3B12-312、578933100、4508、4525、6334、S14487、AS-0168G YITAO番号: 3B 8033
配送時間: 3～10日 保証: 12ヶ月
タイプ: 空気バネ、サスペンションスプリング 主な材質: ゴム+金属
パッキング: ニュートラルパッキングまたはカスタマイズされたパッキング
ハイライト:

Firestone drive axle air bag

,

Contitech FT330 air ride spring

,

2B air bag with warranty

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag
This high-quality three-layer corrugated air spring is specifically designed for industrial applications and offers exceptional performance and durability.
OE Manufacturer Numbers
  • W01-358-8033, FT330-29525, 3B12-312, 578933100, 4508, 4525, 6334, S14487, AS-0168G
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8033 W013588033 / W01-358-8033 / W01 358 8033
Contitech FT330-29525 FT33029525 / FT330-29525 / FT330 29525
Goodyear 3B12-312 3B12312 / 3B12-312 / 3B12 312
Goodyear 578933100 578933100
Triangle 4508 4508
Triangle 4525 4525
Triangle 6334 6334
Hendricksor S14487 S14487
Watson&Chalin AS-0168G AS0168G / AS-0168G / AS 0168G
Technical Specifications
Specifications Parameters
Outer diameter φ295
Weight 7.675 kg
Net weight 7.08 kg
Package Dimensions 34*34*23.5 cm
Natural height 310mm
Maximum height 117mm
Minimum height 460mm
Extended Height /
Compressed Height /
Top Plate Width 231mm
Piston Width 231mm
Product Drawings & Images

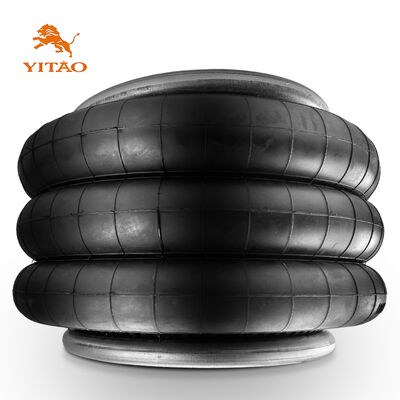

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 0
Images shown are for reference only. Actual product may vary slightly.

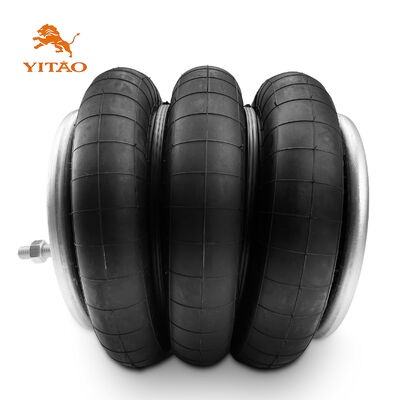

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 1
Factory Overlook

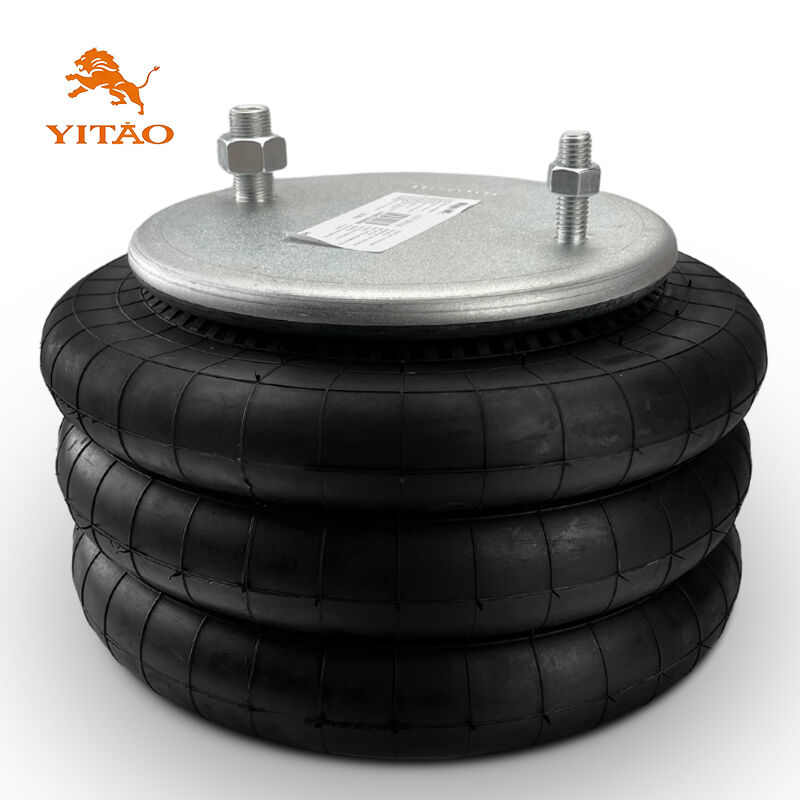

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 2
Quality Control Inspection

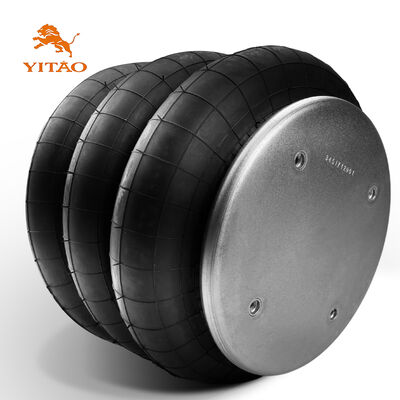

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 3
Manufacturing Equipment

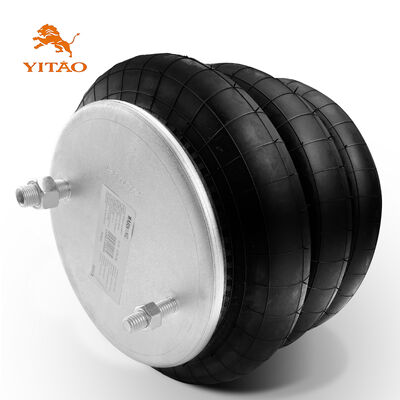

Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 4
R&D Center
Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 5
Assembly and Forming
Firestone W01-358-8033 Contitech FT330-29525 2B Drive Axle Air Bag 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
