Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

大画像 :  Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

商品の詳細:
起源の場所: 中国
ブランド名: YITAO
証明: IATF16949
モデル番号: 2B 5330/02B 330
お支払配送条件:
最小注文数量: 50ピース
価格: Negotiable in person
パッケージの詳細: カートン
受渡し時間: 1～30日
支払条件: T/T
供給の能力: 5000個/月
連絡先

Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

説明
OE 番号: W01-358-7180​​、W01-358-7122、FD330-22363、2B12-425、311、578923309、VSP2B22R7180、57007180、AS01541G OE NO2: 01881F,055000001,6316,4363,8030190,SC2075,1685179C1,1VA1816,1003587180C
YITAO番号: 2B 5330 配送時間: 3～10日
保証: 12ヶ月 タイプ: 空気バネ、サスペンションスプリング
主な材質: ゴム+金属 パッキング: ニュートラルパッキングまたはカスタマイズされたパッキング
ハイライト:

Firestone double convoluted air spring

,

Goodyear 2B12-425 air ride spring

,

W01-358-7180 air spring with warranty

Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring
High-quality double convoluted air spring designed for optimal performance and durability in industrial applications.
OE Manufacturer Numbers
  • W01-358-7180, W01-358-7122, FD330-22363, 2B12-425, 311, 578923309
  • VSP2B22R7180, 1003587180C, 57007180, AS01541G, 01881F
  • 055000001, 6316, 4363, 8030190, SC2075, 1685179C1, 1VA1816
Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-7180W013587180 / W01-358-7180 / W01 358 7180
FirestoneW01-358-7122W013587122 / W01-358-7122 / W01 358 7122
ContitechFD330-22363FD33022363 / FD330-22363 / FD330 22363
Goodyear2B12-4252B12425 / 2B12-425 / 2B12 425
Goodyear578923309:578923309
VibracousticVSP2B22R7180:VSP2B22R7180
Ridewell1003587180C:1003587180C
SAF Holland57007180:57007180
Watson&ChalinAS01541G:AS01541G
Watson&Chalin01881F:01881F
Peerless055000001:055000001
Triangle6316:6316
Triangle4363:4363
EI Ride8030190:8030190
LelandSC2075:SC2075
Navistar1685179C1:1685179C1
Hendrickson1VA1816:1VA1816
Technical Specifications
Specifications Parameters
Outer diameterφ298
Weight5.435kg
Net weight4.872kg
Package Dimensions34*34*23.5cm
Natural height214mm
Maximum height80mm
Minimum height290mm
Extended Height305mm
Compressed Height81mm
Top Plate Width231mm
Piston Width231mm

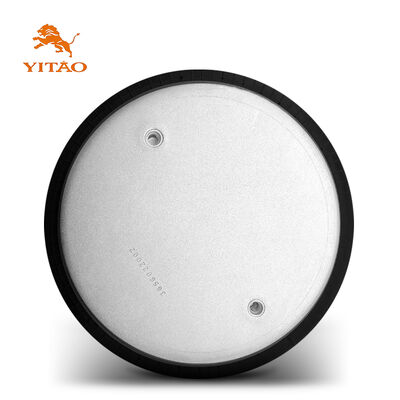

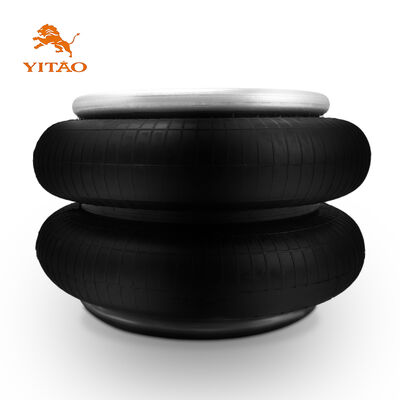

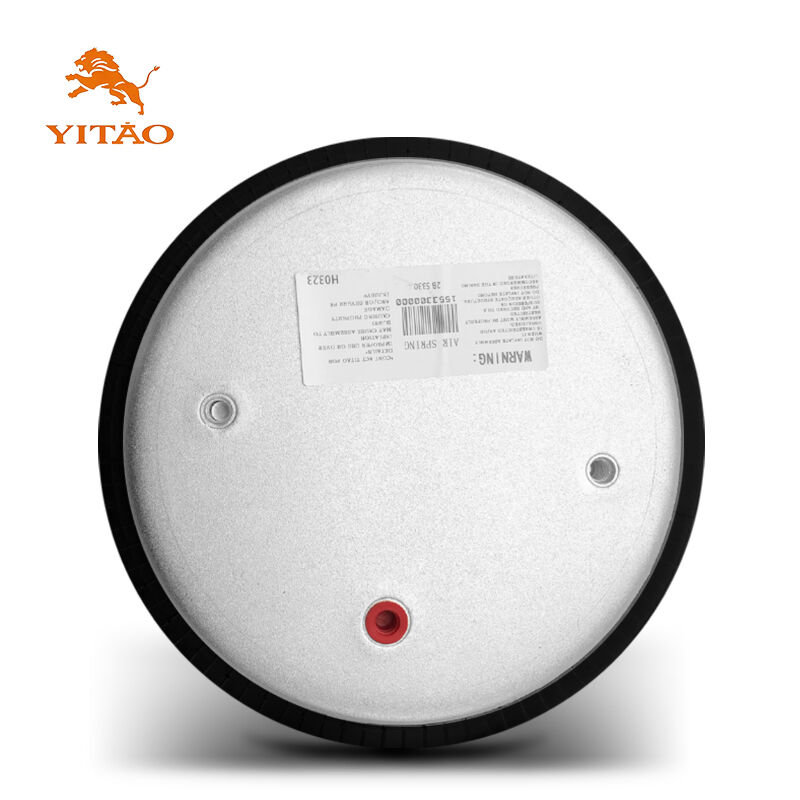

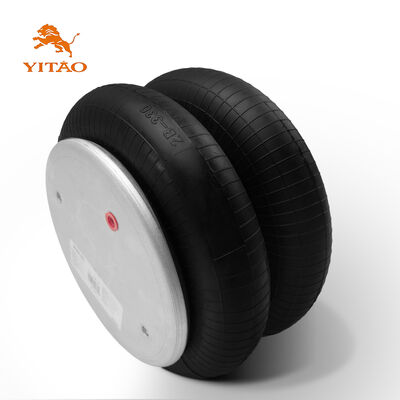

Product Drawings & Images
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 0
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 1
Factory Overlook
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 2
Quality Control Inspection
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 3
Manufacturing Equipment
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 4
R&D Center
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 5
Assembly and Forming
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
Contact Us
Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
