Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9

Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9

大画像 :  Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9

商品の詳細:
起源の場所: 中国
ブランド名: YITAO
証明: IATF16949
モデル番号: 1V 6098/0V6098
お支払配送条件:
最小注文数量: 50枚
価格: Negotiable in person
パッケージの詳細: カートン
受渡し時間: 1～30日
支払条件: T/T
供給の能力: 5000個/月
連絡先

Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9

説明
OE 番号: W01-M58-8612、1T17BS-6、4022NP05、50669、1R11-781、1DK22E9、132922、32619KPP、9518117810、3.229.0033.00、MLF70 YITAO番号: 1V 6098
タイプ: トラック用空気ばね 状態: 真新しい
保証: 12ヶ月 通常の配送時間: 3～10日
シーリング構成: 圧着カバープレート+加硫シールプレート 材料: 天然ゴム
ピストン材質: プラスチック パッキング: ニュートラルパッキングまたはカスタマイズされたパッキング
ハイライト:

Heavy-duty truck air spring replacement

,

Firestone air suspension rubber spring

,

OE truck air spring W01-M58-8612

Heavy-duty Truck Air Suspension Rubber Air Spring
OE Replacement Firestone W01-M58-8612, Phoenix 1DK22E9
Product Overview
Semi-Trailer Air Suspension Rubber Air Spring OE Replacement. Manufactured to specifications matching Contitech 910-14P345 and Airtech 3415402KPP, this air spring fully replaces the original equipment and provides a comfortable and stable ride.
Cross Reference Numbers
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8612 W01M588612 / W01-M58-8612 / W01 M58 8612
Firestone 1T17BS-6 1T17BS6 / 1T17BS-6 / 1T17BS 6
Contitech 4022NP05 :4022NP05
Contitech 50669 :50669
Goodyear 1R11-781 1R11781 / 1R11-781 / 1R11 781
Phoenix 1DK22E9 :1DK22E9
Airtech 132922 :132922
Airtech 32619KPP :32619KPP
WABCO 9518117810 :9518117810
SAF 3.229.0033.00 :3.229.0033.00
Meritor MLF7044 :MLF7044
Technical Specifications
Specifications Parameters
Outer diameter φ247
Weight 8.060 kg
Package Dimensions 28*28*37.5 cm
Natural height 550mm
Maximum height 530mm
Minimum height 192mm
Extended Height /
Compressed Height /
Top Plate Width 262mm
Piston Width 240mm

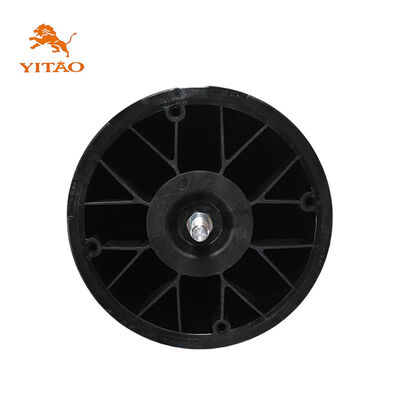

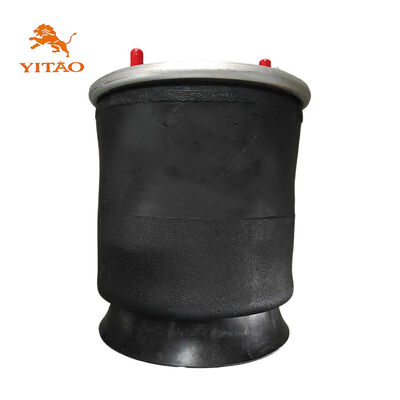

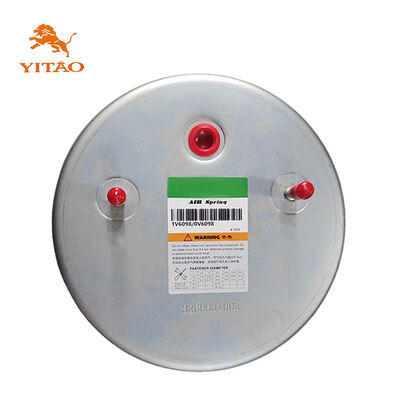

Product Drawings & Images
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 1
Factory Overlook
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 2
Quality Control Inspection
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 3
Manufacturing Equipment
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 4
R&D Center
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 5
Assembly and Forming
Heavy-duty Truck Air Suspension Rubber Air Spring OE Replacement Firestone W01-M58-8612 Phoenix 1DK22E9 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
